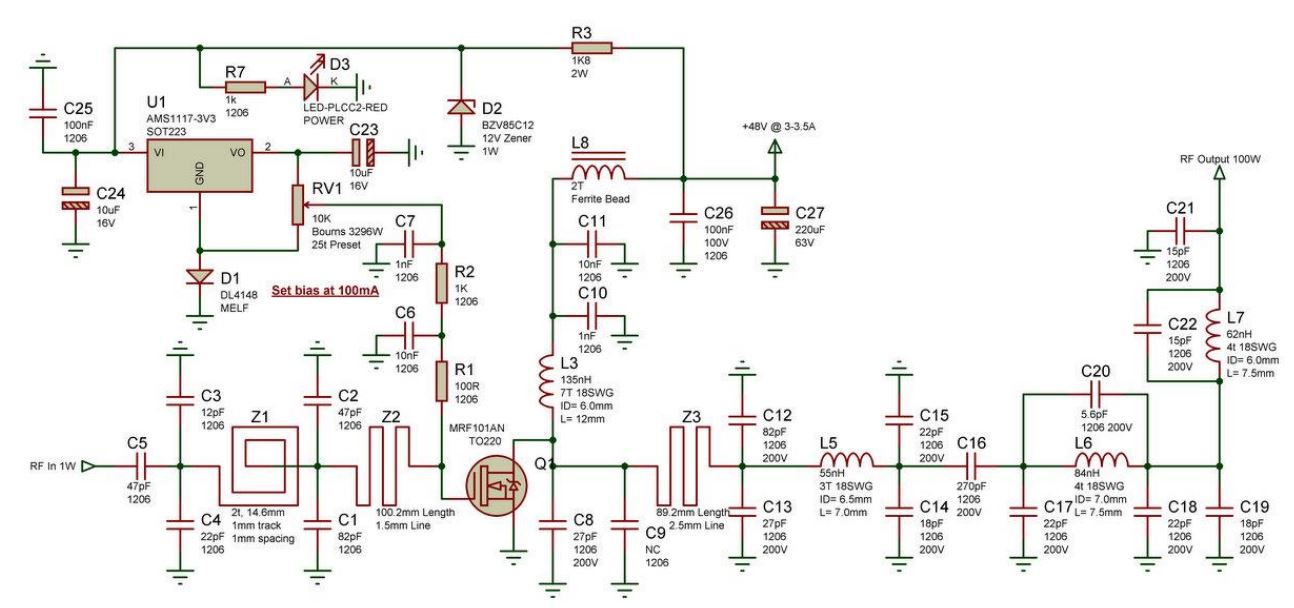

DIY KIT 100 WATT amplifier 87-108MHZ MRF101A

€45.41

Designed by Nick Proctor

Quantity
In Stock

Parts kit with all components to build a 100w output stage.

All smd components are already mounted.

Build with high-quality components (ATC100b capacitors, etc.)

Only winding 4 coils yourself and assemble a few standard components.

Click on attachments for the documentation!

#: Dimensions 119.5 x 57 mm

#: Frequency Band 85.00 - 108MHz

#: Output Power >100W
#: Supply Voltage 48 Vdc
#: Input Power 1W
#: High Efficiency – Up to 80%
#: On-board Low Pass Filter
#: Broadband – No Tuning Required
#: Temperature Compensated Bias
#: High Ruggedness – Up To 65:1 SWR
#: Output Complies with International Broadcast Standards

5 Items

Download

mrf101

Download (98.73k)

partsmrf101

Download (106.84k)
