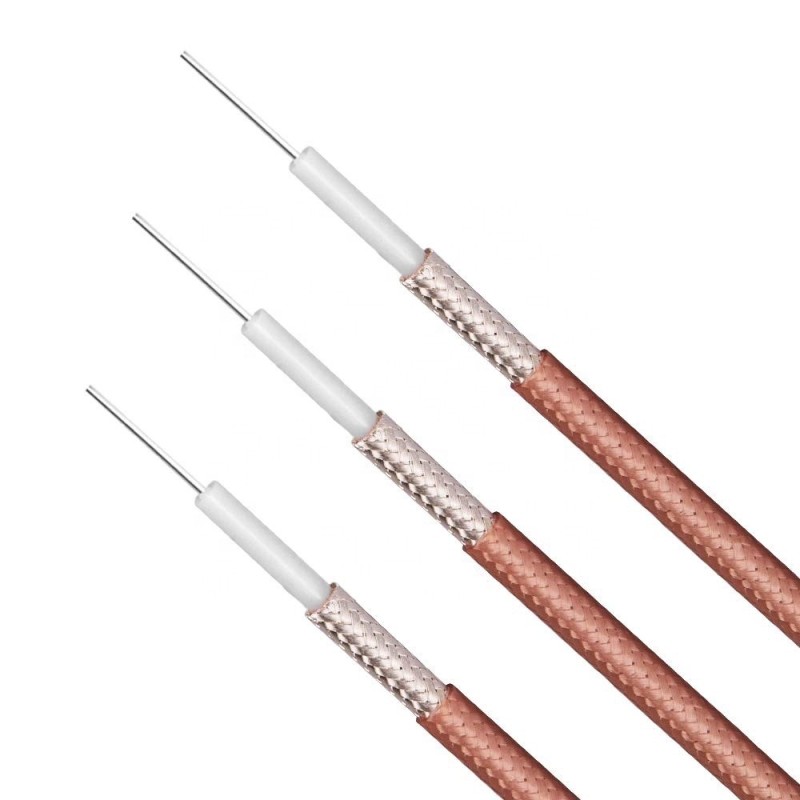

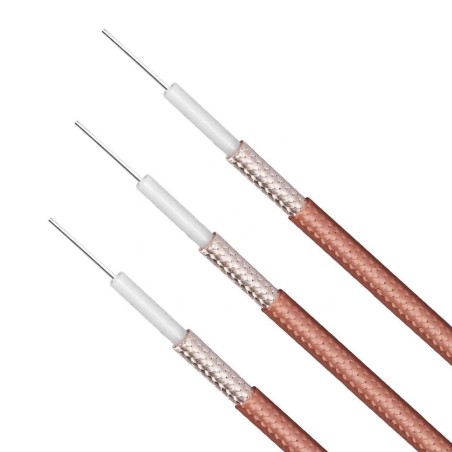

RG303 50 Ohm Teflon Coax

€4.09
Tax included
Quantity
In Stock


RG 303 met transparante isolatie  teflon coax (prijs is per meter)

Perfecte kabel voor het bedraden van high power amplifiers

Op 100 MHZ belastbaar tot 2350 Watt

Specificaties:



*Inner Conductor Silver-Plated Copper,Silver-Plated Copper Clad Steel 0.94mm

*Dielectric Core Polytetrafluoroethylene(PTFE) 2.98mm

*Outer Conductor tinned Copper braiding 3.50mm

*Jacket Fluorinated ethylene propylene(FEP) transparant 4.10 mm

*Electrical Data : Impedance,nominal 50ohms

*Capacitance,nominal 98pF/m

*Signal delay,nominal 4.7ns/m

*Voltage withstand(AC) 3000V rms/min

*Insulation resistance,nominal 1500 MΩ·km

*Velocity 70%

*Mechanical Data Temperature rating 150

*Minimum bending radius 25mm

*Maximum tensile strength 12.8kg

*Weight of cable 46g/m

Attenuation and Power

Frequency MHZ Attenuation(dB/m Power Watts CW
100                      0.13                          2350
400                      0.27                          1050
900                      0.43                            640
1000                      0.46                            600
1800                      0.63                            430
2400                      0.72                            350
3000                      0.82                            310
